Description:

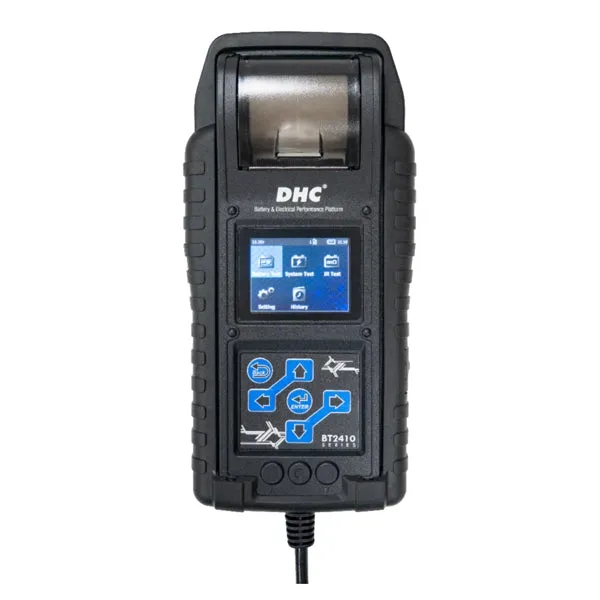

The BT2410 is an advanced hand-held battery and electrical system tester designed to deliver precise and reliable performance. Ideal for automotive professionals, this tool provides comprehensive testing capabilities for 6V and 12V batteries, as well as 12V and 24V cranking and charging systems. With its new coloured TFT-LCD display and intuitive graphical user interface, the BT2410 makes diagnosing battery and electrical system issues fast and straightforward. Whether you need to test traditional AA alkaline batteries or modern rechargeable batteries, the BT2410 offers flexible support and robust functionality to meet your testing needs.
Key Features:
- Advanced Display Technology: Equipped with a coloured TFT-LCD display, offering clear and easy-to-read test results with a graphical user interface.
- Intuitive User Interface: Features a virtual keyboard for quick input and a friendly interface for ease of use.
- Comprehensive Testing Capabilities: Tests 6V and 12V batteries, including start-stop batteries, and performs 12V and 24V cranking and charging system tests.

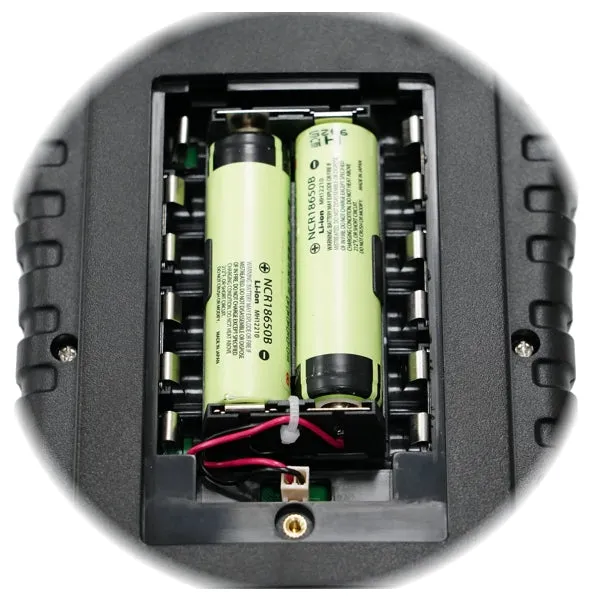

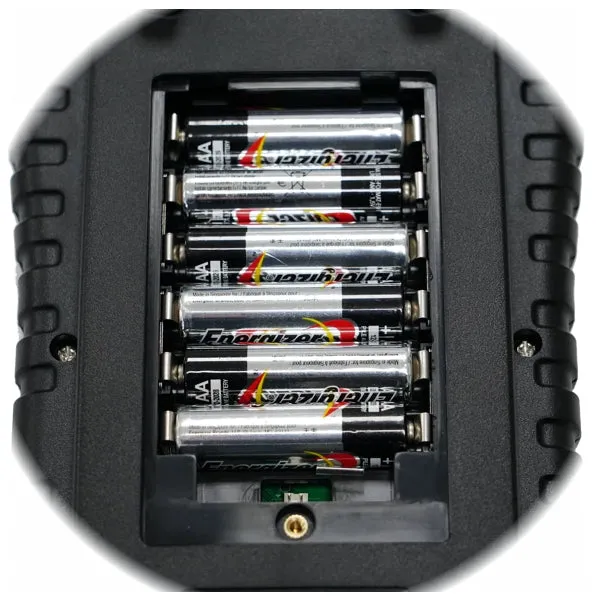

- Flexible Battery Support: Accommodates various battery types, including AA alkaline, AA NiMH rechargeable, and 18650 Li-Ion rechargeable batteries.
- PC Software Integration: Allows test result downloads, management, export, and firmware updates via companion PC software.
- In-Field Firmware Update: Supports firmware updates in the field through PC software, ensuring the tester remains current with the latest features.
- Clamp-Cable Diagnostics: Built-in diagnostic capability to confirm the performance of clamps and cables.
- Multilingual Support: Operates in multiple languages including English, French, Spanish, German, and more.
Technical Information:
- Model Number: BT2410
- Applications: 6V and 12V battery tests, 12V start-stop battery tests, 12V and 24V cranking/charging system tests, internal resistance tests
- Supported Battery Types: Flooded, AGM Flat, AGM Spiral, EFB, VRLA/GEL
- Supported Battery Ratings: CCA/SAE, EN, EN2, IEC, JIS, DIN, CA/MCA
- Operating Range: 25 to 3,000 CCA (SAE)
- Voltage Range: 1V to 32V
- Connections: Wired USB Type-A
- Firmware Update: Yes (via PC Software)
- PC Software: Yes, includes test code and test counter with support for recalling and printing results from the last 7 days
- Printer: 2-inch thermal printer
- Display: Coloured TFT-LCD, 240x320 resolution
- Input Device: 6-key keypad (up, down, left, right, enter, back)
- Clamp-Cable Set Length: 1.8 metres (approx. 5.9 feet)
- Detachable Cable: Yes
- Internal Battery Support: AA Alkaline/NiMH batteries, 18650 Li-Ion batteries
- Dimensions: 285 x 140 x 75 mm (approx. 11.2 x 5.5 x 3 inches)
- Operating Languages: English, French, Spanish, German, Italian, Portuguese, Polish, Dutch, Turkish, with more languages possible
